Migrating from v4 to v5¶

This guide walks you through moving production data from Dependency-Track v4 (Postgres or Microsoft SQL Server) into a new Dependency-Track v5 instance (Postgres only).

The migration is a one-shot, offline operation performed by the v4-migrator command-line tool. The tool extracts rows from your v4 database, transforms them inside the Postgres cluster backing the v5 deployment, and loads them into the v5 schema. v4 must be offline for the duration. The tool does not write to the v4 source.

If you only need to step a v5 deployment between v5 releases, this guide is not for you. See the per-release upgrade pages instead.

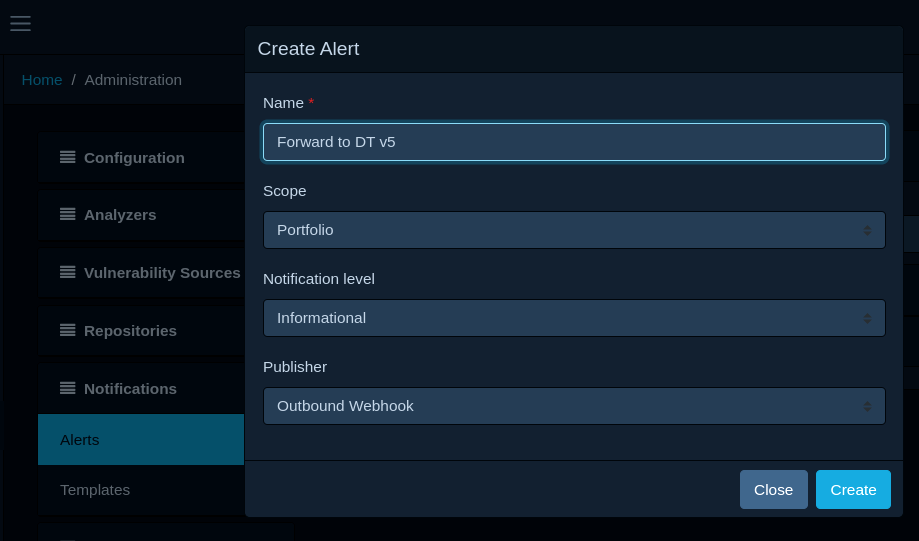

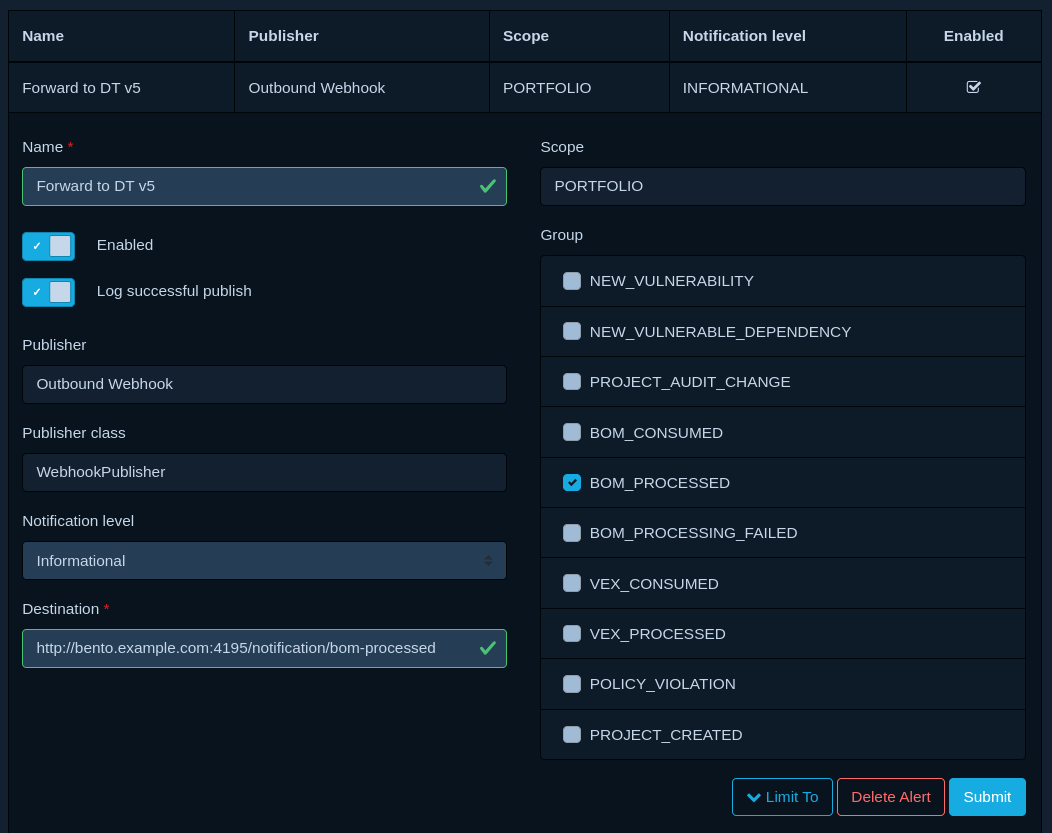

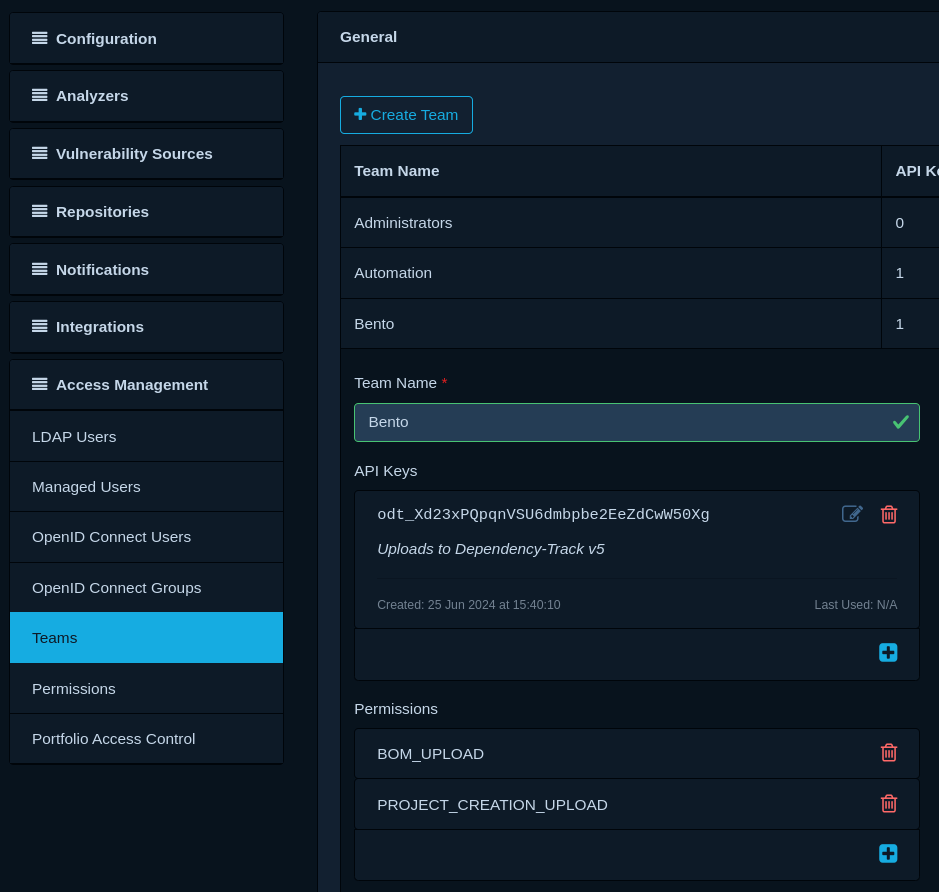

To try v5 against your real workload before committing to the migration, see Running v4 and v5 in parallel.

To walk this migration end to end against a sandbox v5 stack before the production cutover, see Rehearsing the v4 to v5 migration.

How the migration works¶

The v4-migrator command-line tool runs three offline phases (extract, transform, load) against the v5 deployment's Postgres target. Rows from the v4 source land first in a dedicated staging schema (dt_v4_migration) inside the v5 cluster, where the migrator reshapes them into v5 form. Only the load phase writes to the final v5 schema. The v5 apiserver stays offline until load and verify finish, after which you drop the staging schema and bring the apiserver up.

flowchart LR
    V4[(v4 database<br/>Postgres or MSSQL)]
    subgraph V5[Postgres cluster<br/>backing v5]
        STG[[staging schema<br/>dt_v4_migration]]
        FIN[(v5 schema)]
    end
    APP[v5 apiserver]
    V4 -- "1. extract" --> STG
    STG -- "2. transform" --> STG
    STG -- "3. load" --> FIN
    FIN -. "4. start after verify" .-> APP

Before you start¶

Make sure the following holds:

Source version. The v4 instance must be on 4.14.2 or later. The migrator assumes the schema and data shape of that release. Lower versions are not supported and may fail or silently produce broken output. Upgrade v4 to at least 4.14.2 before running the migrator.
Source. Your v4 database runs on Postgres (any version supported by v4) or Microsoft SQL Server 2016 or later. H2 is not supported. Stop the v4 API server before you start. The tool does not write to the source, but concurrent v4 writers produce inconsistent extracts.
Target. A Postgres 14+ cluster, dedicated to the v5 instance, ready to receive data. The migrator's bootstrap step applies the v5 database schema for you. See Configuring the database for guidance on provisioning the target cluster. Don't boot the v5 apiserver against the target before running the migrator, or its seeding task populates tables the migrator needs to fill from v4. The migrator refuses to run against any schema version other than the one it ships against, or if the target already holds user data.
Database user. Use the same database user for the migrator that the v5 apiserver uses afterwards, or grant the apiserver's user ownership of every object the migrator creates. The apiserver applies follow-up schema migrations on each release and needs DDL privileges on the v5 schema and its tables. A mismatch here surfaces as failed startup migrations after a later v5 upgrade, not at migration time.
Disk. The target cluster needs free disk for roughly two times the final dataset size. Staging tables hold a source-typed copy of every migrated row alongside the final v5 rows until you drop the staging schema.
Extensions. The target must support installing pg_trgm. The v5 schema bootstrap installs the extension. The migrator's preflight verifies it.
JDBC reachability. The host running the migrator can open JDBC connections to both the v4 source and the v5 target.

Warning

The v4 database must run offline during the migration. Do not point the migrator at a live v4 instance. The tool trusts the offline contract. It does not take write locks on the source.

Run the migration¶

The migrator ships as a container image published at ghcr.io/dependencytrack/v4-migrator:<version>. See Container images for registries and tag conventions.

The examples below use the following shell alias for brevity:

alias v4-migrator='docker run --rm -it --network=host ghcr.io/dependencytrack/v4-migrator:<version>'

Note

--network=host only works on Linux. On Docker Desktop for macOS and Windows, the flag is silently ignored and the container gets its own network namespace. Replace localhost / 127.0.0.1 in your JDBC URLs with host.docker.internal to reach databases on the host, or attach the container to a user-defined Docker network (--network <name>) where both source and target are reachable.

Password prompts

The examples below pass --source-pass and --target-pass without an argument. The migrator then prompts for the password interactively, keeping the secret out of shell history and ps output. To supply a password inline, write --source-pass <value> / --target-pass <value> instead.

1. Apply the v5 schema¶

Bootstrap the target database. This applies the v5 schema migrations and is safe to re-run. The user passed here becomes the owner of the v5 schema objects, so use the same user the v5 apiserver connects as (see the Database user note in the preceding section).

v4-migrator bootstrap \
  --target-url 'jdbc:postgresql://target-host:5432/dtrack' \
  --target-user dtrack \
  --target-pass

After this, the target has the v5 schema and a seeded PERMISSION catalog (the well-known set of v5 permissions). Bootstrap writes no other rows. The migrator's later phases populate LICENSE, TEAM, USER, and the rest from your v4 source.

2. Verify the target¶

Run preflight to catch problems before you commit time to extraction:

v4-migrator verify \
  --target-url 'jdbc:postgresql://target-host:5432/dtrack' \
  --target-user dtrack \
  --target-pass

verify reads but never writes. On a freshly bootstrapped target with no staging present, expect:

Flyway head 202605111028 reported OK.
All row count columns except for the v5 PERMISSION table zero.
No probe entries.
The terminator line == verify complete ==.

At this stage the migration has not moved any data, so verify shows the seeded baseline with nothing to flag.

3. Dry run¶

Before the real run, confirm what happens:

v4-migrator run \
  --target-url 'jdbc:postgresql://target-host:5432/dtrack' --target-user dtrack --target-pass \
  --source-url 'jdbc:postgresql://v4-host:5432/dtrack' --source-user dtrack --source-pass \
  --metrics-retention-days 90 \
  --dry-run

--dry-run runs preflight and prints the plan. It writes nothing to either database.

4. Extract, transform, load¶

Run all three phases in one go:

v4-migrator run \
  --target-url 'jdbc:postgresql://target-host:5432/dtrack' --target-user dtrack --target-pass \
  --source-url 'jdbc:postgresql://v4-host:5432/dtrack' --source-user dtrack --source-pass \
  --metrics-retention-days 90

You must pass --metrics-retention-days to run and extract. v4 has no retention concept, and v5 introduces one, see About time series metrics. The migrator forces you to choose explicitly rather than silently dropping or carrying over metrics rows. Use 0 to drop all v4 metrics, a positive integer to keep the last N days, or a large number to migrate everything. The migrator pre-creates one daily partition per retained day, so large values noticeably extend the load phase.

Or run the phases individually if you want to inspect staging between steps:

v4-migrator extract   --target-url ... --source-url ... --metrics-retention-days 90
v4-migrator transform --target-url ...
v4-migrator load      --target-url ...

For a Microsoft SQL Server source, swap the source URL:

--source-url 'jdbc:sqlserver://v4-host:1433;databaseName=dtrack'

Append the same connection parameters (TLS, authentication, etc.) you use for the v4 deployment.

The migrator auto-detects the source flavor from the JDBC URL.

5. Sample mode¶

To test the pipeline against your data before committing to a full run, sample a small number of rows per table:

v4-migrator run ... --sample 100

--sample caps the extract per table. The downstream phases run against the sampled data and produce a valid (but partial) v5 dataset.

Before the full run, reset the target the same way you would after a failed load: drop and re-create the v5 schema (or the entire target database), re-run v4-migrator bootstrap, and drop the staging schema with v4-migrator cleanup. See Recovering from a failed load for the reasoning. Don't TRUNCATE v5 tables manually.

6. Verify the result¶

After load, run verify again. It now reports source / staging / v5 row counts per table and surfaces every probe (malformed UUIDs, etc.):

[Schema]
  OK    Flyway head = 202605111028

[Row counts]
  Table                       Source      Staging           v5    Note
  LICENSE                       5234         5234         5234
  TEAM                            47           42           42    expected: dedup by NAME (-5)
  COMPONENT                  4823714      4823711      4823711    see [Probes] (-3)
  PROJECTS_TAGS                12480        12462        12462    reduction (-18), see migration guide
  ...

[Probes]
  COMPONENT                3 malformed UUID(s) dropped

[Constraints]
  18 CHECK constraint(s) hold across 6 loaded table(s)

== verify complete ==

The Note column annotates tables whose row count drops from source to v5. Row counts often decrease during migration because of deduplication, filtering, and retention. The migrator makes these reductions intentionally. The Note (and the [Probes] section) tells you which reason applies, so you can confirm what accounts for each drop rather than leaving it unexplained. Each note is one of three states:

expected: <reason> (-N). A known, intentional reduction. The reason maps to a transform in the Lossy and non-obvious changes section.
see [Probes] (-N). The [Probes] section itemizes the drop (invalid UUIDs, skipped users, case collisions).
reduction (-N), see migration guide. An intentional reduction without a dedicated note. Consult the Lossy and non-obvious changes section to understand it.

Permission join tables are not a data-loss signal

TEAMS_PERMISSIONS and USERS_PERMISSIONS both lose and gain rows as part of the v4-to-v5 permission remap (see v5-only permissions granted from v4 equivalents), so their row-count delta carries no meaning. Disregard any Note on these two tables.

The final == verify complete == line marks a clean exit. Its absence means verify stopped before finishing.

7. Drop staging¶

Once satisfied with the result, drop the staging schema:

v4-migrator cleanup \
  --target-url ... --target-user ... --target-pass

Or pass --drop-staging to the load invocation up front to drop on success:

v4-migrator load ... --drop-staging

Lossy and non-obvious changes¶

These transformations apply automatically. None are configurable except metrics retention.

Username collisions across user types¶

v4 stored managed, LDAP, and OIDC users in three separate tables. v5 stores them in one. If the same username exists across types, the migrator inserts the managed user first, then suffixes the LDAP and OIDC variants:

alice (managed) → alice
alice (LDAP) → alice-CONFLICT-LDAP
alice (OIDC) → alice-CONFLICT-OIDC

The suffixed account no longer matches its external identity. After the migration, list every user whose name ends in -CONFLICT-LDAP or -CONFLICT-OIDC. For each one, decide whether the account is a genuine duplicate of the managed user without the suffix (delete it), or a legitimate external identity that needs the original username back (delete or rename the managed user without the suffix, then rename the suffixed account to match its external identity).

User records without a username¶

v4 allowed managed and LDAP user rows with USERNAME IS NULL. v5 requires a non-null username. The migrator silently skips these rows. They were unusable in v4 (no login surface), so dropping them is safe.

V5-only permissions granted from v4 counterparts¶

v5 splits two abilities that v4 carried implicitly into dedicated permissions. For each one, the migrator grants the new v5 permission to every v4 user and team that held the v4-era counterpart, so that pre-migration authorizations continue to work as before. If you want the v5 split semantics instead, revoke the new permission from the affected principals after the migration.

PORTFOLIO_ACCESS_CONTROL_BYPASS. v4's ACCESS_MANAGEMENT permission implicitly granted the ability to bypass portfolio access control. The migrator grants PORTFOLIO_ACCESS_CONTROL_BYPASS to every v4 user and team that holds ACCESS_MANAGEMENT.
SECRET_MANAGEMENT. v4 had no dedicated secret-management permission. Repository basic-auth passwords and analyzer / vulnerability-source API credentials were configurable by anyone with SYSTEM_CONFIGURATION. v5 manages these through a dedicated secret manager gated by SECRET_MANAGEMENT. The migrator grants SECRET_MANAGEMENT to every v4 user and team that holds SYSTEM_CONFIGURATION.

v4 permission names that v5 has retired (for example VIEW_BADGES) drop out during migration. Any user or team assignment referencing one of those names is silently removed.

Dedup of teams, OIDC groups, and tags¶

v4 did not enforce uniqueness on TEAM.NAME, OIDCGROUP.NAME, or TAG.NAME. v5 does. The migrator collapses duplicates to the row with the smallest ID, rewrites references in every join table to the canonical ID, and drops the non-canonical rows.

Project deduplication¶

v5 enforces uniqueness on (NAME, VERSION) per project (with a separate partial index for the version-NULL case). The migrator collapses duplicates by keeping the newest by LAST_BOM_IMPORTED. Older duplicates drop out.

Project activity state¶

v4 carried an ACTIVE true/false flag. v5 carries INACTIVE_SINCE (an optional timestamp). v4 active projects become INACTIVE_SINCE = NULL. v4 inactive projects become INACTIVE_SINCE = '1970-01-01 00:00:00+00' (Unix epoch) as a sentinel meaning "migrated from v4 as inactive, exact deactivation time unknown."

Vulnerability EPSS values¶

v4 stored EPSS score and percentile directly on each vulnerability row. v5 stores EPSS in a dedicated table populated from the upstream feed. The migrator does not copy v4 EPSS values. v5 re-populates them at runtime within minutes of first launch.

Metrics retention¶

v5 keeps daily metrics within a retention window. v4 had no matching setting, so the migrator requires the --metrics-retention-days flag on extract and run. Rows in DEPENDENCYMETRICS and PROJECTMETRICS older than the cutoff drop out. Portfolio metrics are not migrated. v5 derives them as a materialized view computed on demand.

Notification rule configuration¶

v5 changes the on-wire format of NOTIFICATIONRULE.PUBLISHER_CONFIG from free-form text to JSON. The migrator rebuilds the configuration for each rule from the v4 destination (and, for Jira, jiraTicketType) and sets ENABLED = FALSE on every migrated rule. Any other publisher-specific fields encoded in the v4 text payload drop out.

Warning

Every migrated notification rule lands turned off in v5. Review and re-enable each rule after verifying its configuration.

Repository, analyzer, and vulnerability-source credentials¶

v4 stored repository basic-auth passwords on REPOSITORY.PASSWORD, and analyzer (OSS Index, Snyk, Trivy, VulnDB) and vulnerability-source (NVD, GitHub Advisories, OSV) API credentials as encrypted property values. v5 manages every one of these through a centralized secret manager that the migrator does not populate.

The migrator nulls every REPOSITORY.PASSWORD and turns off the affected repositories. It drops analyzer and vulnerability-source credentials as part of the encrypted-property handling described below.

After the migration, open the Repositories, Analyzers, and Vulnerability Sources pages in the v5 administrator panel and re-enter each credential through the secret manager. Turn the affected repositories back on. See Configuring vulnerability sources for the full procedure to re-enable each mirror. See Configuring secret management if you have not yet set the secret-encryption key for the v5 deployment.

Encrypted property values¶

v5 removes the ENCRYPTEDSTRING property type. The migrator nulls every encrypted property value and rewrites the type to STRING. For credentials stored this way (primarily analyzer and vulnerability-source API keys), see the preceding section for the recovery procedure.

Property values of unknown type¶

v5 restricts property types to a fixed set: BOOLEAN, INTEGER, NUMBER, STRING, TIMESTAMP, URL, UUID. The migrator drops any v4 property whose type falls outside this set (other than ENCRYPTEDSTRING, handled in the preceding section).

Classifier values¶

v5 removes the NONE classifier for projects and components. The migrator rewrites every NONE to NULL. Any other v4 classifier value not in the v5 set is also coerced to NULL (the column permits NULL).

PURL filtering for package metadata¶

v4 indexed repository metadata by name and namespace. v5 indexes it by package URL (PURL) and enforces a CHECK constraint that forbids @, ?, &, and # in PURLs. The migrator skips repository metadata rows whose derived PURL contains any of those characters. v5 repopulates package metadata from the same upstream sources at runtime.

Removed tables¶

The following v4 tables have no v5 counterpart and do not migrate:

EVENTSERVICELOG, INSTALLEDUPGRADES, SCHEMAVERSION. The v5 schema-migration and durable-execution bookkeeping take over.
COMPONENTANALYSISCACHE. Runtime cache. v5 repopulates as needed.

Malformed UUIDs¶

v5 stores UUIDs as native uuid instead of varchar(36). The migrator validates UUIDs against the canonical format. The migrator drops any row with a malformed UUID and records it in the probe_invalid_uuids table inside the staging schema. verify reports the count per source table. The staging probe persists until you drop the staging schema, so you can audit affected rows.

MSSQL case-folded uniqueness¶

Microsoft SQL Server's default collation (SQL_Latin1_General_CP1_CI_AS) treats Alice and alice as the same value. Postgres treats them as distinct. The migrator preserves both rows in v5. Where v5 enforces uniqueness on a case-folded v4 column (for example, two TEAM.NAME values differing only in case), the rows survive as two distinct entries. Inspect your data before the run if this is a concern.

Runtime behavior changes¶

The preceding section covers transformations the migrator applies to your data. This section covers differences in how v5 runs against migrated data. None of these are configurable. Expect them after switching to v5, and correlate observed effects (metric drops, missing findings) back to the entries below.

Inactive findings¶

v4 only added findings. A finding persisted on a component even after every analyzer stopped reporting it. v5 deactivates such findings automatically, and the default views exclude inactive findings.

Expect a one-time drop in active-finding counts, and a corresponding step-down in time-series metrics, shortly after the first v5 analysis cycle. v5 retains the historical rows in an inactive state instead of deleting them, but they no longer count toward active totals.

Performance and observability¶

Throughput depends on your hardware, the source flavor, and the dataset size. Expect roughly 50 MB/s for the Postgres-to-Postgres extract (binary COPY) and roughly 20 MB/s for the Microsoft SQL Server source (JDBC batched insert).

For visibility during long runs, the migrator emits per-table progress lines like:

INFO  Extracting LICENSE
INFO    -> 5234 rows in 142 ms
INFO  Transforming LICENSE
INFO    -> 5231 rows in 38 ms
INFO  Loading LICENSE into v5
INFO    -> LICENSE: 5231 rows in 27 ms (193740 rows/s)

The load phase additionally emits a heartbeat every 5 seconds while a single table is still running, so large tables stay visible:

INFO  Loading COMPONENT into v5
INFO    .. COMPONENT: still loading after 25s (expected 4823714 rows)
INFO    .. COMPONENT: still loading after 30s (expected 4823714 rows)
INFO    -> COMPONENT: 4823714 rows in 32104 ms (150253 rows/s)

The expected count is an upper bound. The final count can be lower because of deduplication and dropped rows.

A 100 GB v4 dataset should complete in a few hours on a workstation-class disk, less on dedicated server hardware.

Phase completion lines¶

Each phase prints an explicit completion line on success, after its per-table lines:

INFO  Extract phase completed: 64 table(s), 5821044 row(s) in 184302 ms
INFO  Transform phase completed: 64 table(s), 5820102 row(s) in 96118 ms
INFO  Load phase completed: 64 table(s), 5820097 row(s) in 211740 ms

The run command, which chains extract, transform, and load, prints one final line:

INFO  Migration completed: extract + transform + load finished. Run 'verify' to review row counts and probes.

A completed phase prints its completion line. For run, the Migration completed line confirms success. Absence of that line after the per-table output means the phase did not finish. Check the exit code and the preceding log lines.

After the last table loads, the migrator emits progress lines while it finalizes:

INFO  Finalizing load: re-enabling triggers and resetting identity sequences
INFO  Analyzing 64 loaded table(s)
INFO  Refreshing PORTFOLIOMETRICS_GLOBAL materialized view
INFO  Applying v5.7.0 cleanup deletes

The Load phase completed line follows once finalization finishes.

Resumability¶

Each phase persists per-table state in the migration_state table inside the staging schema.

extract and transform are safely re-runnable. Restarting extract truncates and re-extracts incomplete tables. Restarting transform drops and rebuilds every tgt_* table (transforms are idempotent).

load is not automatically resumable. Each invocation re-runs every INSERT INTO ... SELECT from scratch. Once v5 holds any rows, a follow-up load call fails on constraint violations and leaves the target in an inconsistent state. See Recovering from a failed load below.

If you need to abandon a run before load starts, drop the staging schema (v4-migrator cleanup) and start fresh, or leave it in place and resume from extract or transform later.

Recovering from a failed load¶

A load invocation that fails partway through leaves rows in v5 from every table that completed before the failure. The migrator does not roll those back, and a straight load retry fails. Pick one of the following.

Start over. Recommended when the failure cause is unclear or when you want a fresh target:

v4-migrator cleanup --target-url ... --target-user ... --target-pass
# Drop and re-create the v5 schema (or the entire target database) yourself, then:
v4-migrator bootstrap --target-url ... --target-user ... --target-pass
v4-migrator run       --target-url ... --source-url ... --metrics-retention-days N

Reload from existing staging. Faster when extract and transform outputs are trustworthy and only the load step failed. The staging schema survives across bootstrap runs, so:

# Drop and re-create the v5 schema (or the entire target database) yourself.
v4-migrator bootstrap --target-url ... --target-user ... --target-pass
v4-migrator load      --target-url ... --target-user ... --target-pass

bootstrap re-seeds the v5 PERMISSION catalog after applying the schema, so the rerun of load can resolve permission foreign keys without re-running transform.

Warning

Don't manually TRUNCATE individual v5 tables and re-run load. The load phase disables triggers on PROJECT and PROJECT_ACCESS_USERS, resets identity sequences, and pre-creates daily metrics partitions in a single sequence. None of that is idempotent at a per-table granularity. Always reset v5 fully before retrying.

Moving the migrated data to its production target¶

If you ran the migration against a dedicated host, you can move the result with pg_dump/pg_restore after the migrator finishes:

pg_dump --format=custom --no-owner --no-acl \
  --exclude-schema=dt_v4_migration \
  -h migration-host -U dtrack dtrack \
  > v5.dump

pg_restore --no-owner --no-acl -d dtrack -h prod-host -U dtrack < v5.dump

Exclude the staging schema (dt_v4_migration by default) from the dump. The staging schema is not portable across clusters and is not needed by v5 at runtime.

What to do after the migration¶

Start the v5 API server and let it run the post-load reconciliation tasks (metrics, policy evaluation). See Deploying to production for the baseline runtime posture. Everything below requires the API server to be running.
Re-enable every migrated notification rule after reviewing its configuration. See Configuring notification alerts.
Re-enter repository, analyzer, and vulnerability-source credentials through the v5 secret manager, and turn the affected repositories back on. See Managing secrets and Configuring secret management. Managing secrets requires the new SECRET_MANAGEMENT permission (granted automatically during migration to principals that held SYSTEM_CONFIGURATION in v4; see v5-only permissions granted from v4 equivalents).
Reconcile every user whose username got a -CONFLICT-LDAP or -CONFLICT-OIDC suffix (delete genuine duplicates, rename legitimate external identities back to their original username).
Wait a few hours, then verify that v5 has populated the EPSS table from the upstream feed.

Setting	Recommendation	Why
`max_wal_size`	8 GB or higher	The load phase logs every write to the WAL. Default sizes checkpoint frequently.
`max_locks_per_transaction`	256	Metrics partition operations can otherwise exhaust the default 64.
`maintenance_work_mem`	1 GB or higher	Speeds index updates during load.
`checkpoint_timeout`	30 minutes	Absorbs load WAL bursts without thrashing.
`checkpoint_completion_target`	0.9	Same.

Migrating from v4 to v5¶

How the migration works¶

Before you start¶

Recommended Postgres tuning¶

Run the migration¶

1. Apply the v5 schema¶

2. Verify the target¶

3. Dry run¶

4. Extract, transform, load¶

5. Sample mode¶

6. Verify the result¶

7. Drop staging¶

Lossy and non-obvious changes¶

Username collisions across user types¶

User records without a username¶

V5-only permissions granted from v4 counterparts¶

Dedup of teams, OIDC groups, and tags¶

Project deduplication¶

Project activity state¶

Vulnerability EPSS values¶

Metrics retention¶

Notification rule configuration¶

Repository, analyzer, and vulnerability-source credentials¶

Encrypted property values¶

Property values of unknown type¶

Classifier values¶

PURL filtering for package metadata¶

Removed tables¶

Malformed UUIDs¶

MSSQL case-folded uniqueness¶

Runtime behavior changes¶

Inactive findings¶

Performance and observability¶

Phase completion lines¶

Resumability¶

Recovering from a failed load¶

Moving the migrated data to its production target¶

What to do after the migration¶

See also¶
