Roles

What are Roles?

Roles increase privacy and allow for better ease of use in large scale projects. Essentially, a role defines a set of permissions and responsibilities that a user or group of users can have within the project. By assigning specific roles, project administrators can control who has access to what resources, ensuring that sensitive information is only accessible to those who need it. Custom roles are also included, allowing for the user to create unique permissions for specific use case.

Scoped Permissions

With the addition of Roles, a normalization of the permission model was done. The current model was split into a global, shared, and teams/project based permission set. For an example of how to utilize them, refer to How To Use Them section.

Current PERMISSION TABLE:

---
title: Current Model
---
erDiagram
    PERMISSION {
        BIGINT ID PK
        TEXT NAME
        TEXT DESCRIPTION
    }

Implemented PERMISSION TABLE:

---
title: Implemented Model
---
erDiagram
    PERMISSION {
        BIGINT ID PK
        TEXT RESOURCE
        TEXT ACCESS_LEVEL
        TEXT DESCRIPTION
    }

User, Role, Permission Relationship Diagram

erDiagram
    %% Table Definitions
    ROLE {
        bigint ID PK
        text NAME
        uuid UUID
    }
    USER {
        bigint ID PK
    }
    PERMISSION {
        bigint ID PK
        text RESORUCE
        text ACCESS_LEVEL
        text DESCRIPTION
    }
    ROLES_PERMISSIONS {
        bigint ROLE_ID FK "References ROLE(ID)"
        bigint PERMISSION_ID FK "References PERMISSION(ID)"
    }
    USERS_ROLES {
        bigint USER_ID FK "References USER(ID)"
        bigint ROLE_ID FK "References ROLE(ID)"
    }
    %% Relationships for USERS_ROLES: This table associates a USER and a ROLE.
    USER ||--o{ USERS_ROLES : "assigned"
    ROLE ||--o{ USERS_ROLES : "applied to"
    %% Relationships between ROLE and PERMISSION via ROLES_PERMISSIONS
    ROLE ||--o{ ROLES_PERMISSIONS : "has"
    PERMISSION ||--o{ ROLES_PERMISSIONS : "assigned via"

How to Use Them?

Creating a New Role

As a user with ACCESS_MANAGEMENT permission:

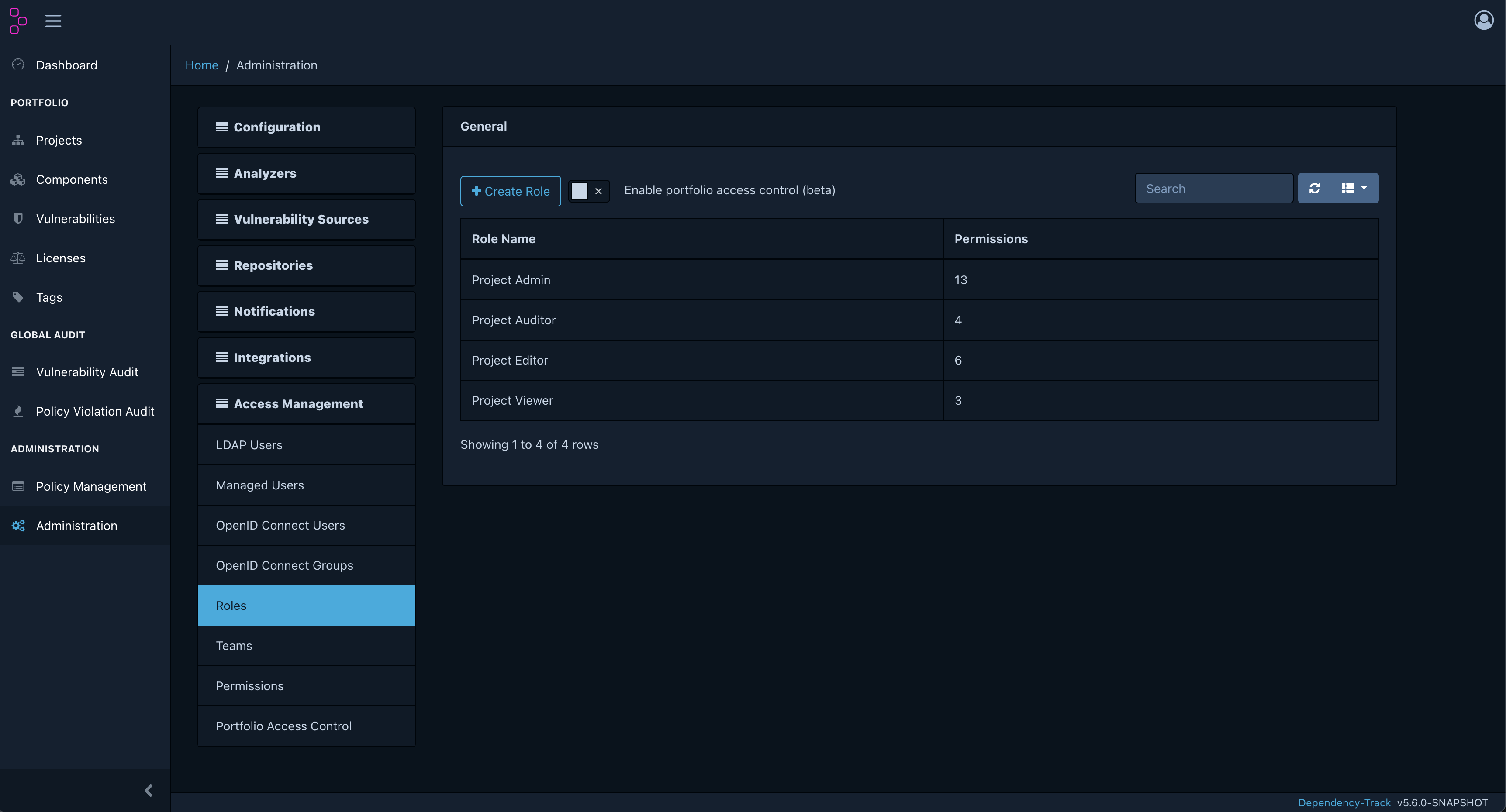

  • Navigate to the Administration > Access Management > Roles page. Role

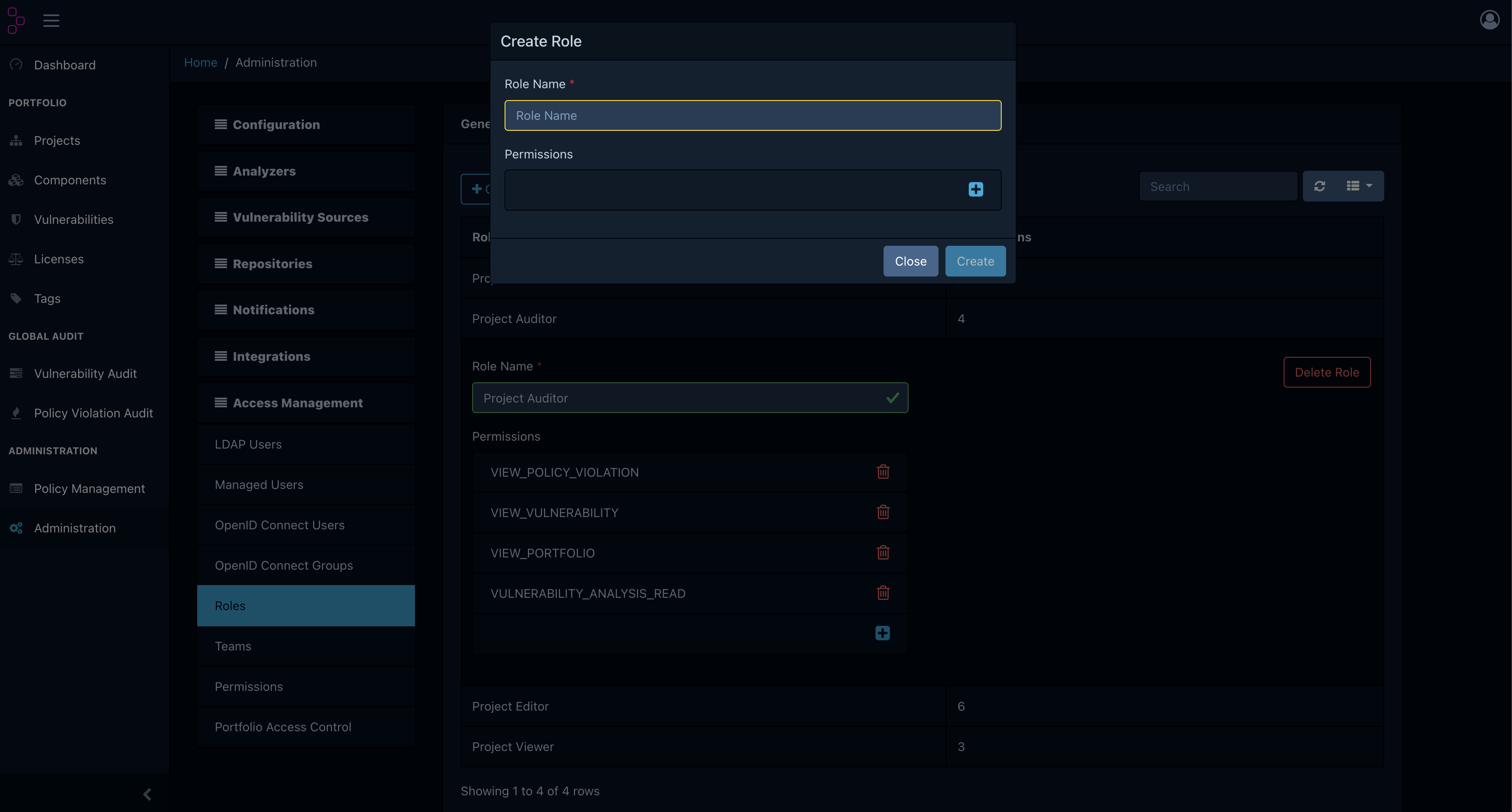

  • Click the + Create Role button. Create Role
  • Provide a Role Name and add Permissions
  • click Create.

Assigning a Role, Project, and Permissions to a User

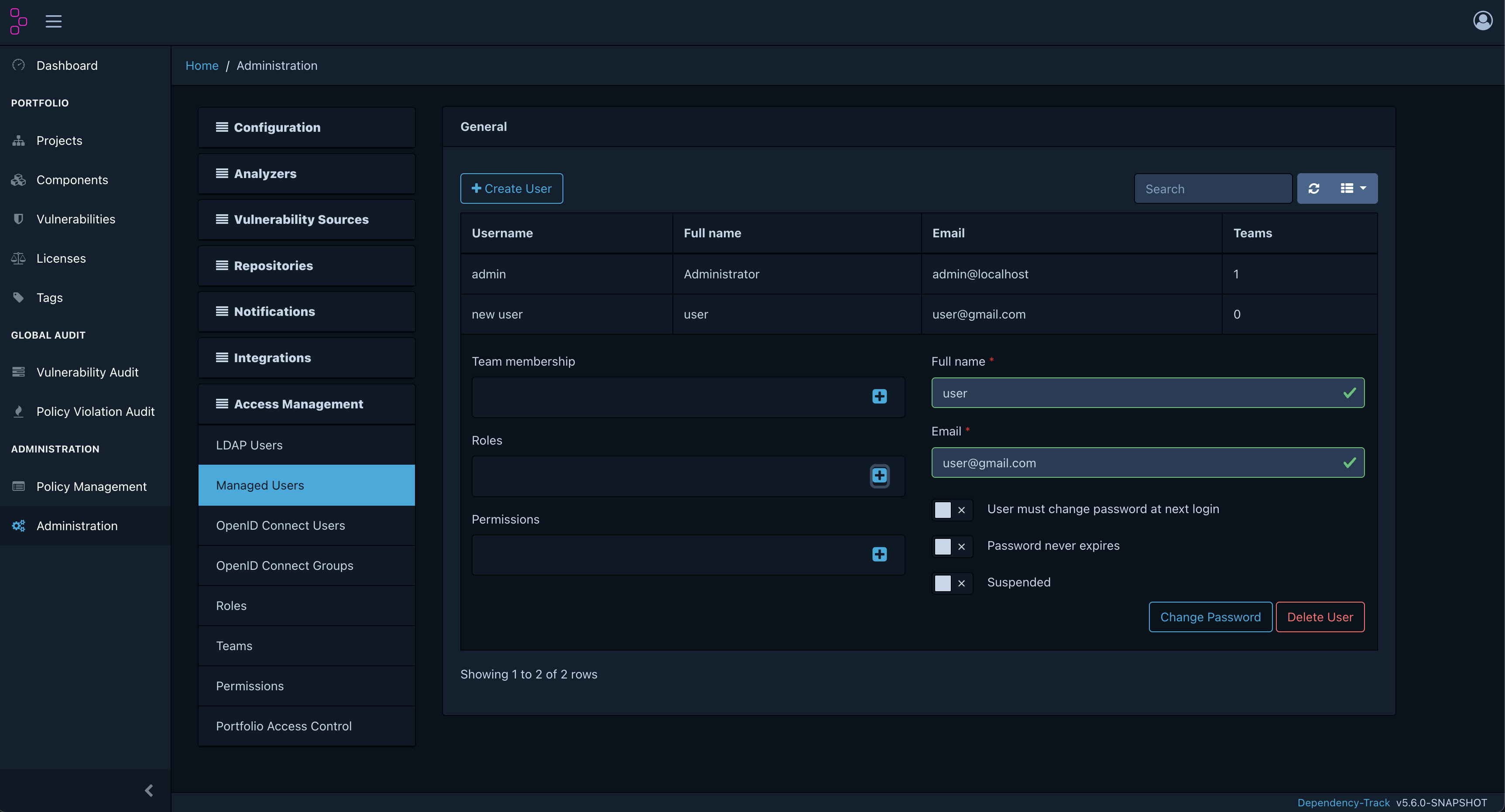

  • Navigate to any of the three user pages: LDAP Users, Managed Users, or OpenID Connect Users. Managed User
  • Click + Create User button.

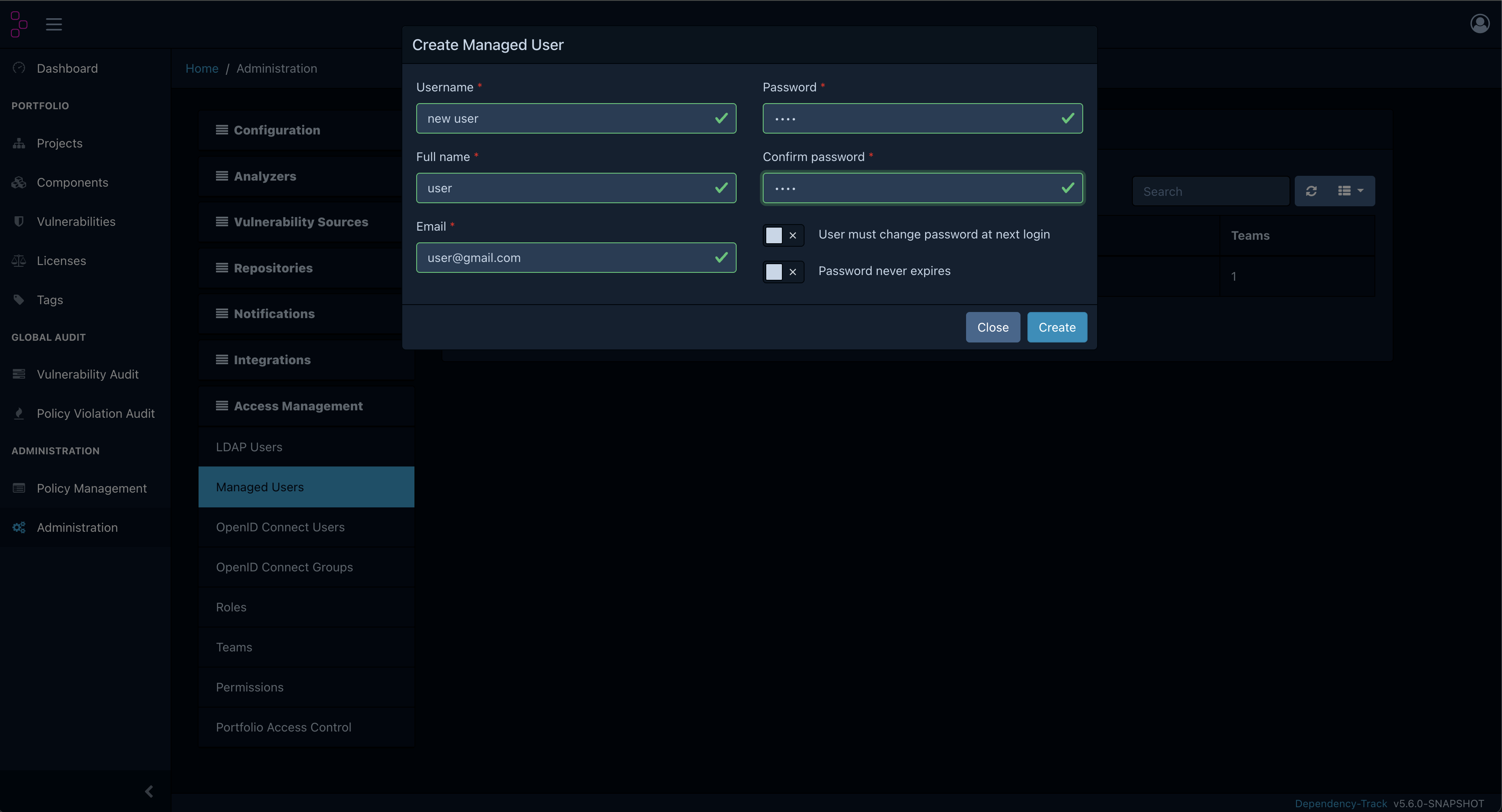

  • Complete the fields in the Create User Modal and click Create. Create Managed User
  • Click + in the Roles modal.
  • Select your desired Project and Role.

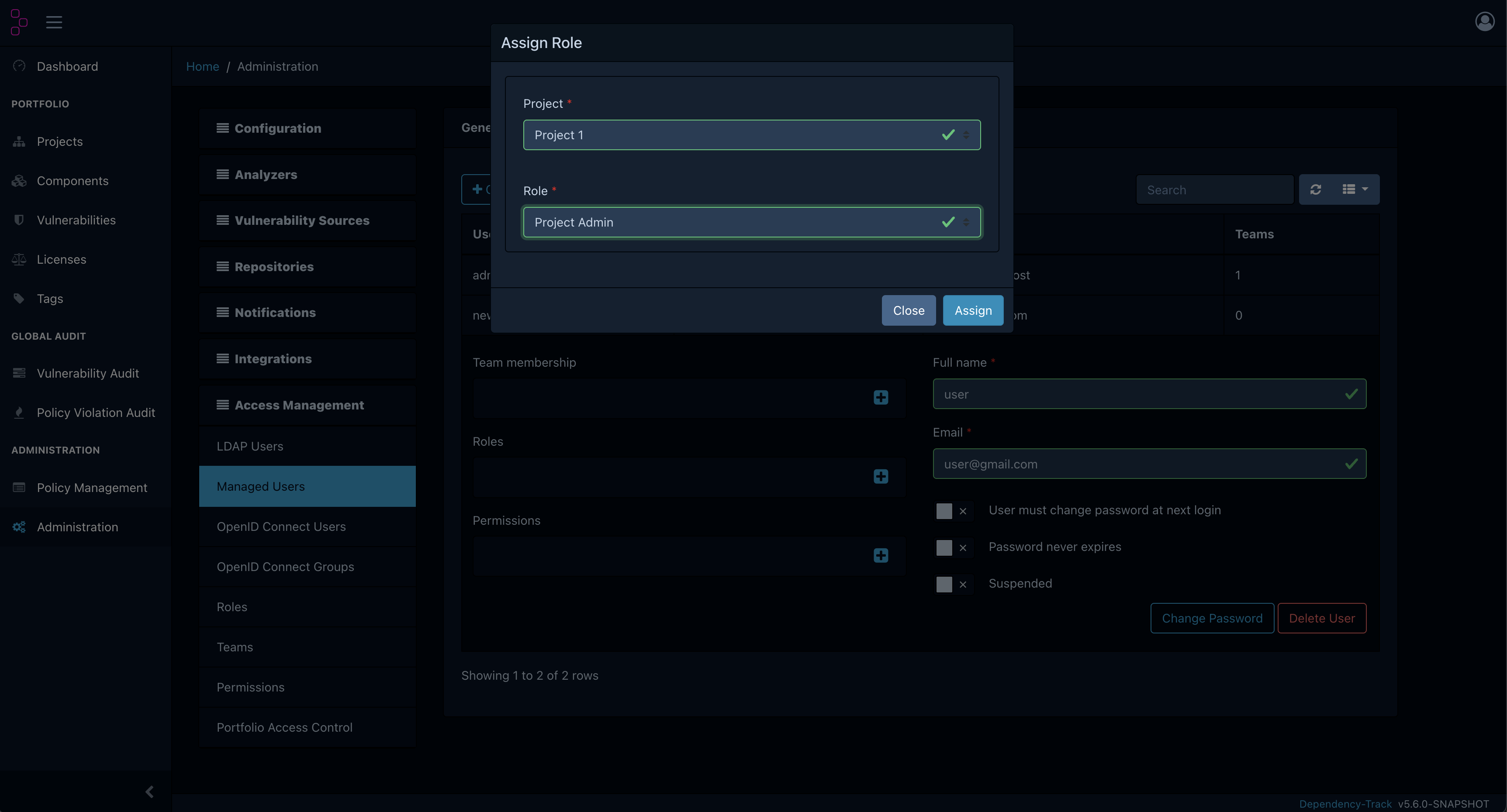

  • Click Assign. Assign Role
  • Click + button in the Permissions modal select desired permissions.

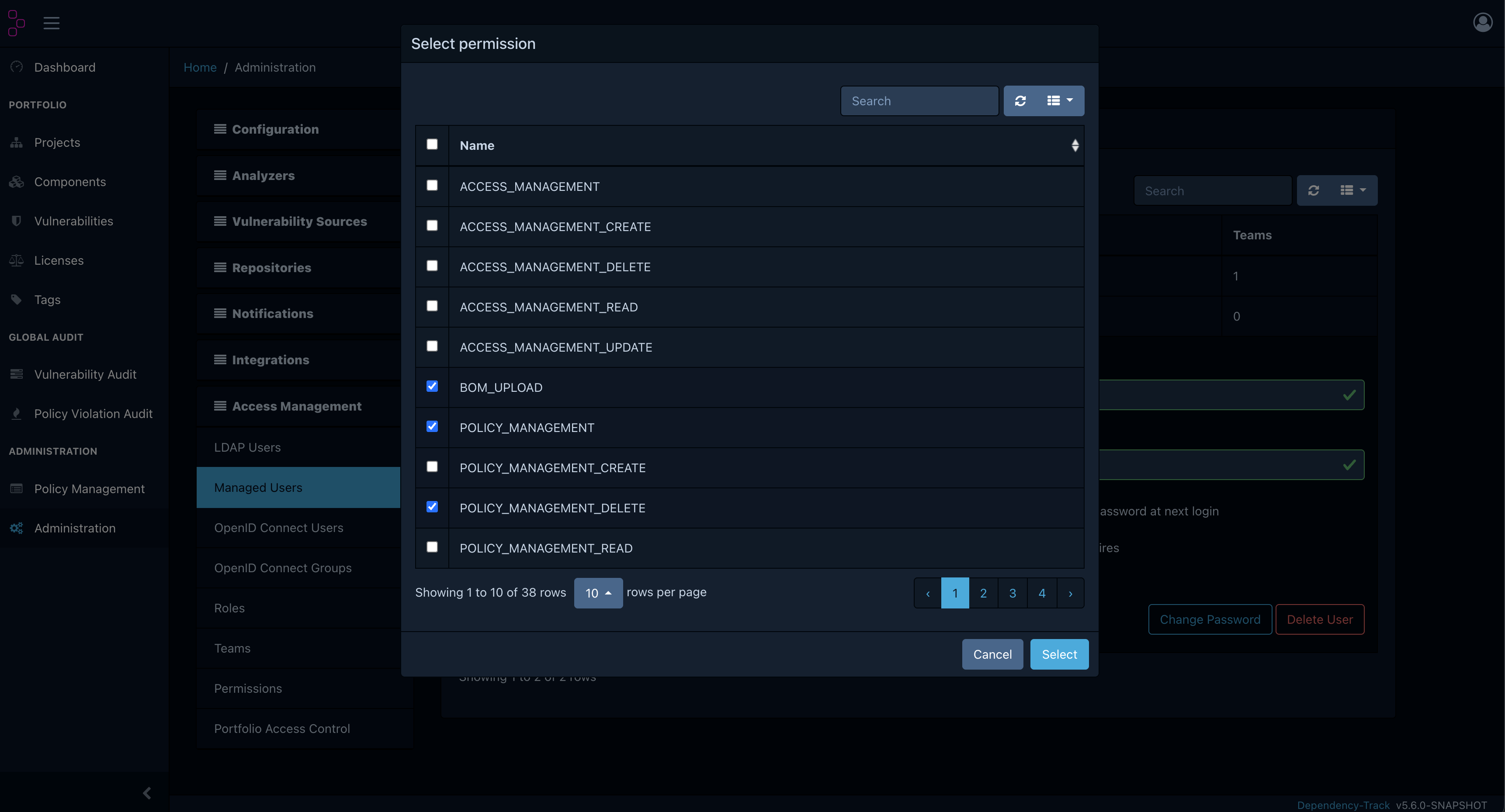

  • Click Select. Select Permissions
